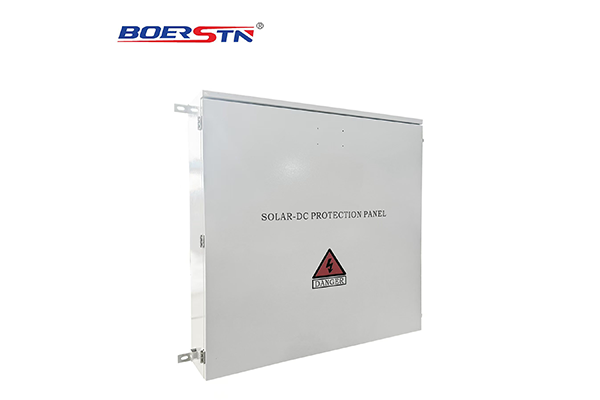

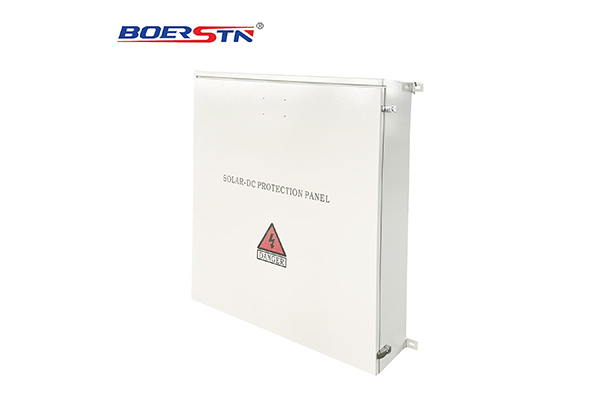

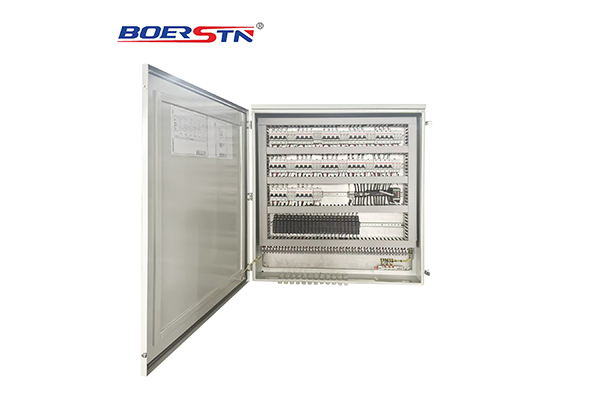

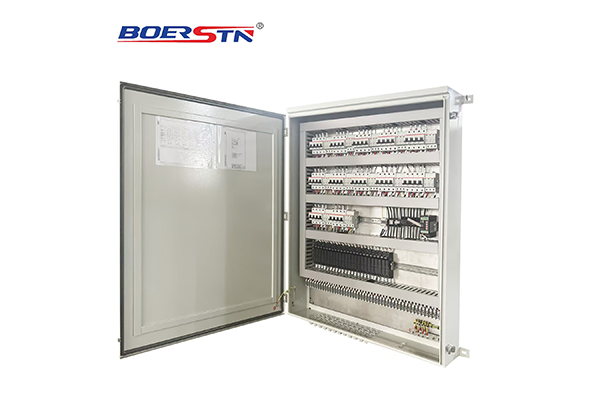

Solar DC 1500V String Box
Solar DC 1500V String Box
Boerstn Electric Co.,Ltd is one of the toppest Solar DC 1500V String Box in China.During these years of exporting , Boerstn Electric Co.,Ltd now has rich experience in the worldwide markets
| General Data | DC Surge Arrester | BUD-40/3 | ||||||||
| Model No | BHS-2/2 | Max Operation Voltage (Ucpv) | 1500V | |||||||
| Input | 2 strings | Standard Compliance with | EN 50539 Type 2 | |||||||
| Output | 2 strings | Maximum Discharge Current | 40 KA | |||||||
| Maximum Voltage | 1500V | Certification | TUV CE | |||||||
| Max DC Short Circuit Current Per Input (Isc) | 32A(Changeable) | |||||||||
| Maximum Current Output | 32A | |||||||||
| Enclosure | BX-26 | DC fuse holder | BR-30 | |||||||
| Material Type | Polycarbonate/ABS | LED Indicator | Yes | |||||||
| Degree of Protection | IP65 | Rated Working Voltage | 1500V | |||||||
| Degree of Resistance to Impacts | IK10 | Fuse Link | 10x85mm LITTEL32A | |||||||
| Dimension (WxHxD) | 292x370x132mm | Certification | CB,CE | |||||||
| Cable input Entry | PG09 Cable Gland,2.5-16mm² | |||||||||
| Output Cable Gland | PG212.5-16mm² | |||||||||
| DC Switch Disconnector | BYT.2-32 | Environment | ||||||||
| Rated Insulation Voltage (Ui) | 1500V | Operating Temperature | -20℃~+60℃ | |||||||
| Rated Current (le) | 32A | Humidity | 99% | |||||||
| Category | DC21B/PV2 | Altitude | 2000M | |||||||
| Standard Compliance with | IEC60947-3 | Installation | Wall Mounting | |||||||
